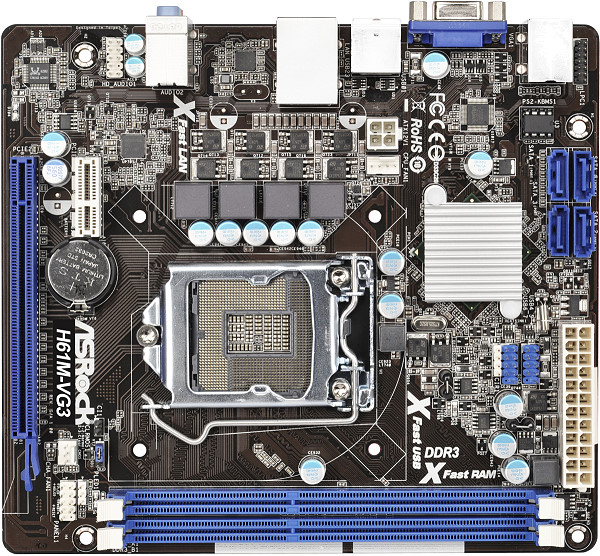

Материнская плата AsRock H61M-VG3 /BULK
Наличие товара: нет
Код: 57205
Материнская плата S1155 (Intel H61, mATX)
|
|
Описание материнской плата AsRock H61M VG3 BULK
.jpg)
| General | |
| CPU | - Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package - Supports Intel® Turbo Boost 2.0 Technology - Supports Intel® K-Series CPU - Supports Hyper-Threading Technology |
| Chipset | - Intel® H61 - Supports Intel® Rapid Start Technology and Smart Connect Technology *Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions. |
| Memory | - Dual Channel DDR3 memory technology - 2 x DDR3 DIMM slots - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. **DDR3 1600 with Intel® Ivy Bridge CPU, DDR3 1333 with Intel® Sandy Bridge CPU. |
| BIOS | - 32Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support |
| Audio, Video and Networking | |
| Graphics | - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU - Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU. - Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU. - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64. |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 3.0 x16 slot (blue @ x16 mode) - 1 x PCI Express 2.0 x1 slot *PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs. |
| Connector | - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions - 1 x Power LED header - 1 x Chassis Intrusion header - 1 x LPC header - 1 x CPU Fan connectors (4-pin) - 1 x Chassis Fan connector (3-pin) - 24 pin ATX power connector - 4 pin 12V power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
| Rear Panel I/O | I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | - ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock Internet Flash - ASRock Dehumidifier Function - ASRock Fast Boot - ASRock Restart to UEFI - Hybrid Booster: - ASRock U-COP - Boot Failure Guard (B.F.G.) - Good Night LED |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM, Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU Temperature Sensing - Chassis Temperature Sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU Fan Multi-Speed Control - CASE OPEN detection - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm - All Solid Capacitor design |
| OS | - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant |
| Certifications | - FCC, CE, WHQL |
